Segment panel

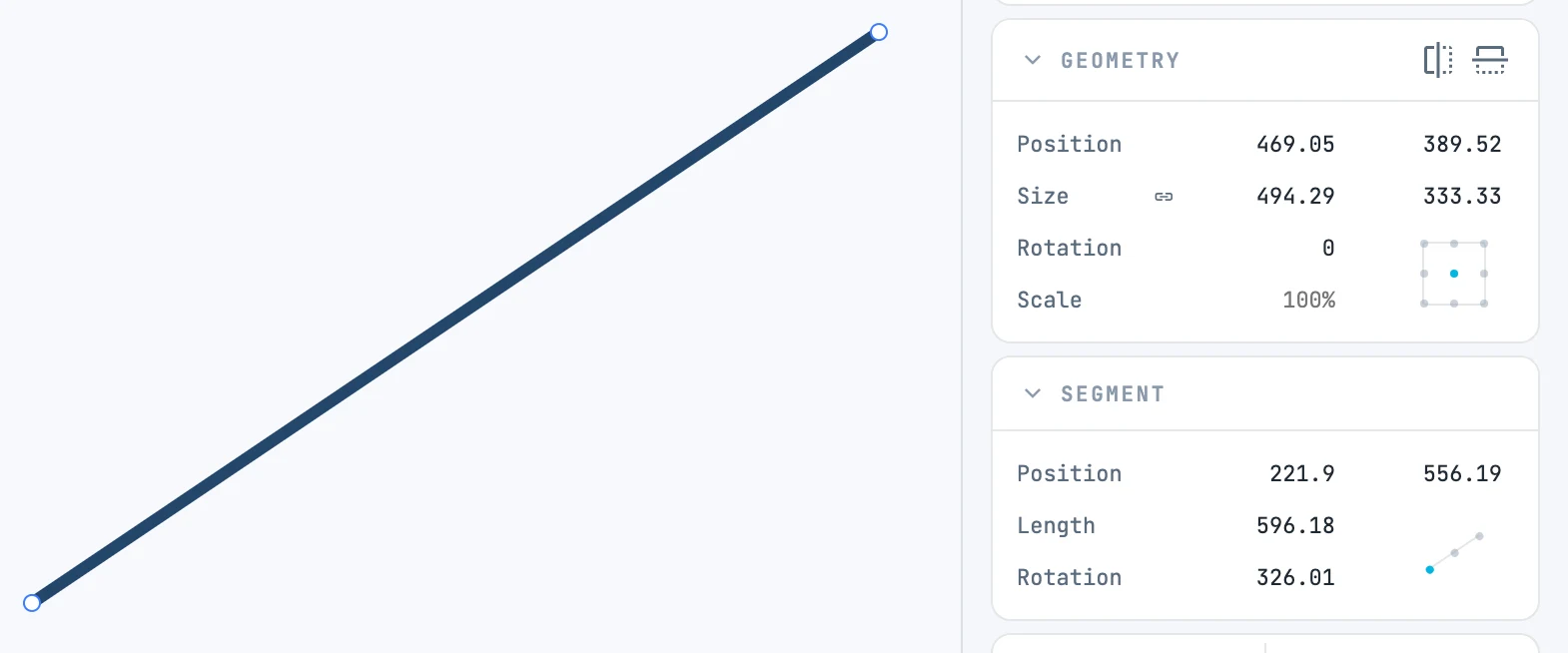

With a line or a dimension selected: objects you reshape from their ends instead of from a bounding box
When it appears
With a line or a dimension selected: objects you reshape from their ends instead of from a bounding box.
Fields
| Field | What it does |
|---|---|
| Position | X and Y of the end selected on the three-point locator |
| Length | the length: the selected end stays fixed and the other moves away or closer along the same line |
| Rotation | the angle, around the selected end |
| 3-point reference point locator | start, center, end: which one stays fixed. When you select an end here, its handle lights up on the canvas |
